Walk-in Cooler Freezer Combo

Alternative Views:

Our Price: $22,111.00

Product Code: WICFC

Qty:

Description

Complete Package	Extended 5 year Compressor Warranty
Russell Refrigeration	Anti-condensate frame
Crown Tonka Panels	Energy Efficient ECM Motors

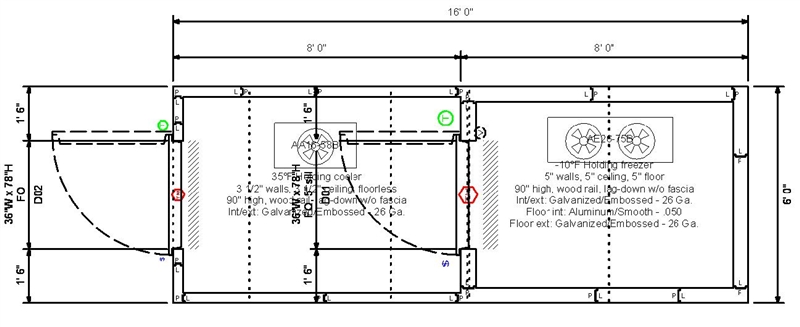

Dimensions:

•Finished opening 36" x 78" hinged self close overlap cooler door, 5" sill

•Latch- Kason 58CL Cylinder Locking - W/59 Roller Strike (Self Closing)

•Pilot Light Switch 120v w/cover(loose), for 2x4 flush handy box (stub conduit to box on interior)

•Thermometer 2 1/2" Dial with Standard Lead

•Door Closer - Kason 1094 SureClose™ Hydraulic (Concealed mounting)

•Gasket- Magnetic

**Heated Jamb (4 sided) w/Threshold (door 2 only)

Finishes

Walls:	Galvanized/Embossed - 26 Ga. - interior & exterior
Floors:	Aluminum/Smooth -.050 - interior Galvanized/Embossed - 26 Ga. - exterior
Ceilings:	Galvanized/Embossed - 26 Ga. - interior & exterior

Panel Thickness

Walls:	3.5" (cooler) 5" (freezer) UL Listed Class 1 Foam
Floors:	5" UL Listed class 1 Foam standard floor 1000 lb/ft² equally distributed (single layer of underlayment in floor)
Ceilings:	3.375" (cooler) and 5" UL Listed Class 1 Foam

COOLER

Condensing Unit

Manufacturer:	Russell
Description:	Med Temp R404A Air Cooled Hermetic Remote Outdoor
Model:	RLH055M44
Horsepower:	0.5hp
Extras:	Defrost timer included. Drier and Sight glass mounted (except for 1/2 to 2 hp med temp units).
Electrical:	230/1/60, RLA 4.6, MOPD N/A, MCA 15
Conditions:	BTUH: 5970 - Room Temp: 35°F - Ambient: 95°F
Warranty:	Compressor-motor warranty extended to 5-years, parts only, no labor

1 x Evaporator (Unit cooler):

Manufacturer:	Russell
Description:	Air defrost Low profile coil
Model:	AA16-58B
Extras:	With expansion valve solenoid and thermostat shipped loose ECM fan motors
Electrical:	115/1/60, Fan amps 0.9, Defrost amps N/A

FREEZER

Condensing Unit

Manufacturer:	Russell
Description:	Low Temp R404A Air Cooled Hermetic Remote Outdoor
Model:	RLH215L44
Horsepower:	2hp
Extras:	Defrost timer included. Drier and Sight glass mounted (except for 1/2 to 2 hp med temp units).
Electrical:	230/1/60, RLA 16.7, MOPD N/A, MCA 24
Conditions:	BTUH: 8870 - Room Temp: -10°F - Ambient: 95°F
Warranty:	Compressor-motor warranty extended to 5-years, parts only, no labor

1 x Evaporator (Unit cooler):

Manufacturer:	Russell
Description:	Electric defrost Low profile coil
Model:	AE26-75B
Extras:	With expansion valve solenoid and thermostat shipped loose ECM fan motors
Electrical:	230/1/60, Fan amps 0.9, Defrost amps 7

Accessories

•Light- 1806 (120v) Vapor-Proof Compact Fluorescent Globe fixture w/bulb (Ship Loose)

•Lag Down Walls to Ceiling - Field Installed Trim Caps

•Vent - 115v Hi-Flow Heated Pressure Relief Port (Kason 1832)

•Blocking For Strip Curtain
